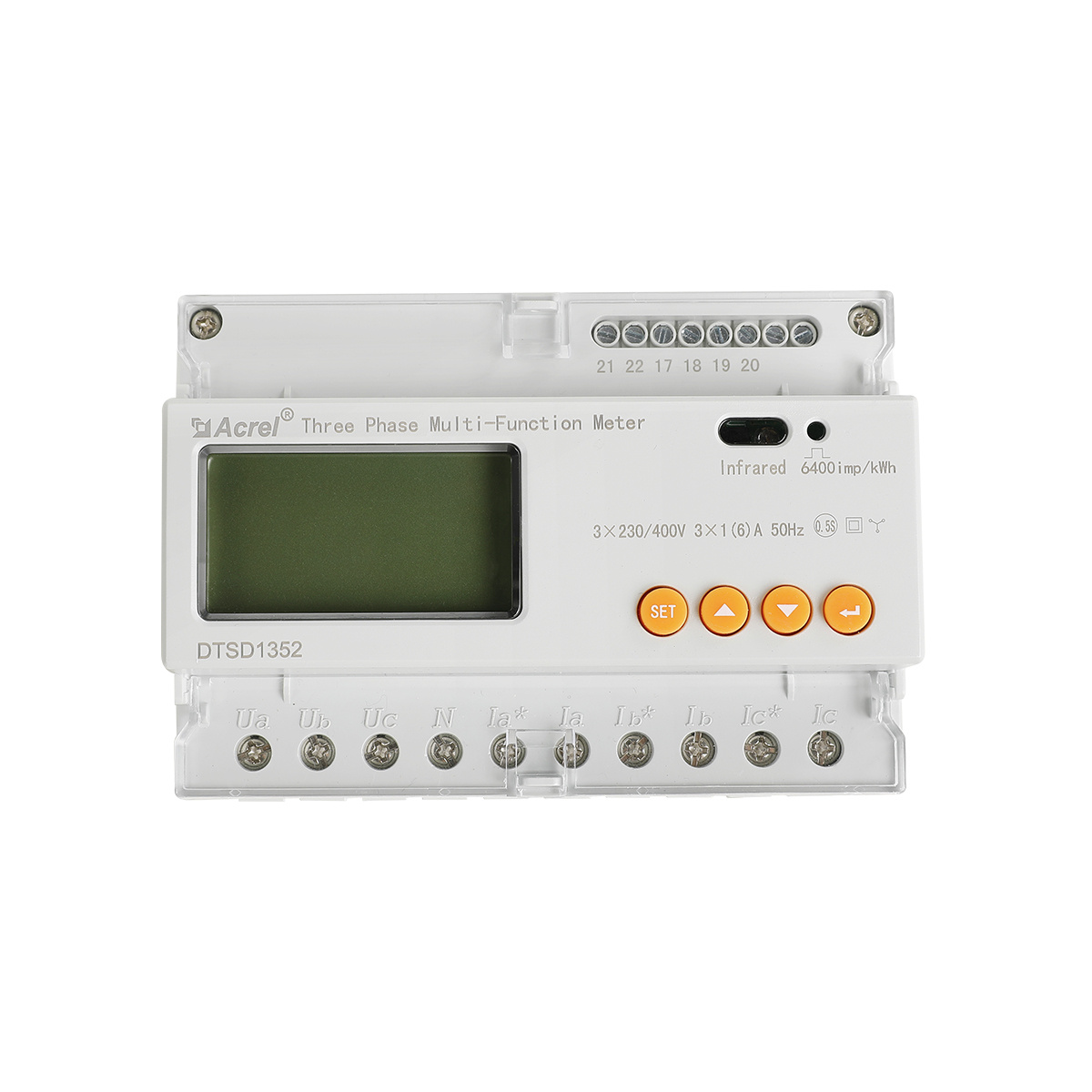

DTSD1352-C THREE PHASE KWH METER

DTSD1352-C THREE PHASE KWH METER

423061
  1. Varumärke ELMARK
  2. Jämföra Skriv ut
  • Pris:
    2518 . 12 kr Inklusive moms
  • Kvantitet (pcs) :

I lager

I lager
KÖP KLAR ATT SKICKA

Tekniska data

  • Modell DTSD1352
  • Antal poler 3
  • Räckvidd 3×1 (6) A
  • Rated current via CTs 3×10(80) A
  • Uppmätt magnitud kWh
  • Varumärke ACREL
  • Garanti

  • DTSD1352-C is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive

    electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with

    switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and

    adapted to MODBUS-RTU. DTSD1352-C can be used in all kinds of control systems, SCADA systems and energy management systems


    FEATURES:


    • 8 bits lcd display

    • Measure parameters: Voltage, current,active power,reactive power, apparent power, power factor and frequency (U,I ,P,Q,S,PF,F)

    • Optional communication protocol and functions: Modbus RTU RS485

    • Multi-tariff :frozen KWH historical, KWH in 3 months, adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tarriff rates
