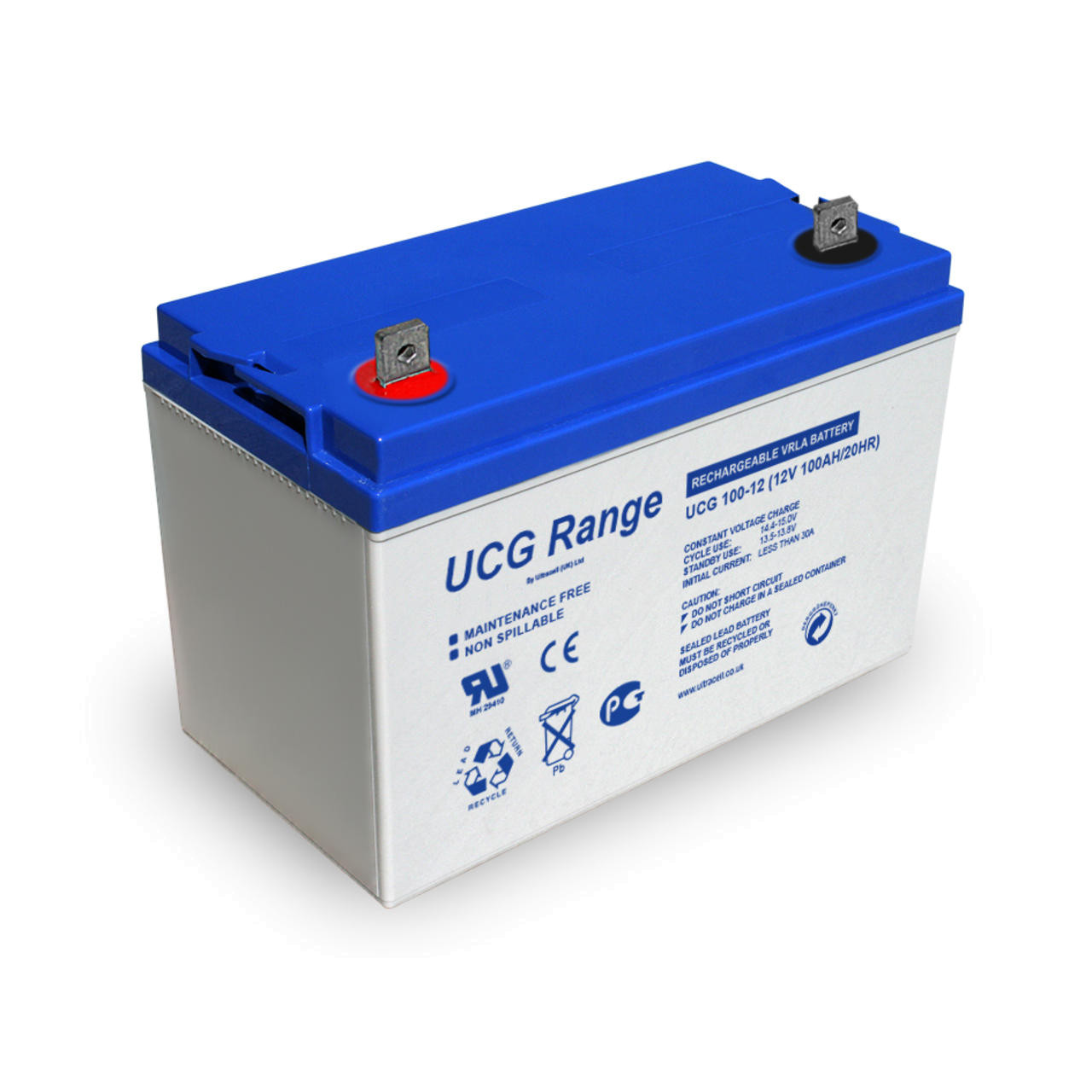

Ultracell UCG series gel batteries are popular with longer self-discharge time compared to other batteries and with special design which increases the life cycle.They can be used in extremely low and high temperatures and doesn’t have to be replenished with electrolyte.
UCG Ultracell series batteries has a longer design life for buffer and cyclic work. They are Deep Cycle Gel series batteries and have longer self-discharge time compared to other batteries. A special plates construction design increases life cycle of the batteries especially in warmer temperatures.
UCG Ultracell series batteries are recommended for emergency light, golf carts, boats, solar/wind mills units, traffic lights and other general-purpose devices.


TECHNICAL DATA:

• Nominal Voltage: 12V
• Nominal Capacity (10HR): 100Ah
• Cycle Life in Relation to Depth of Discharge:
Extracted Capacity 50%: 1200 Cycles
Extracted Capacity 20%: 3600 Cycles
• Rated Capacity:
20HR 1.80V/cell, 25°C- 103 Ah/5.15A
10HR 1.80V/cell, 25°C- 100 Ah/10.0A
5HR 1.75V/cell, 25°C- 85 Ah/17.0A
3HR 1.75V/cell, 25°C- 73.8 Ah/24.6A
1HR 1.60V/cell, 25°C- 59.7 Ah/59.7A
• Max Discharge Current: 1200A (5s)
• Operating Temp Range:
Discharge: -15 ~ 50°C
Charge: 0 ~ 40°C
Storage: -15 ~ 40°C
• Nominal Operating Temp Range: 25 ± 3°C
• Container Material: ABS
• Indoor use
• Dimension LxWxH (mm):330±3ммx173±3ммx232±3мм
• Weight: 30.4 kg

APPLICATON:

• Golf Trolleys
• Garden Equipment
• Portable Equipment
• Solar/Wind Mill Units
• Medical Equipment
• Traffic Lights
