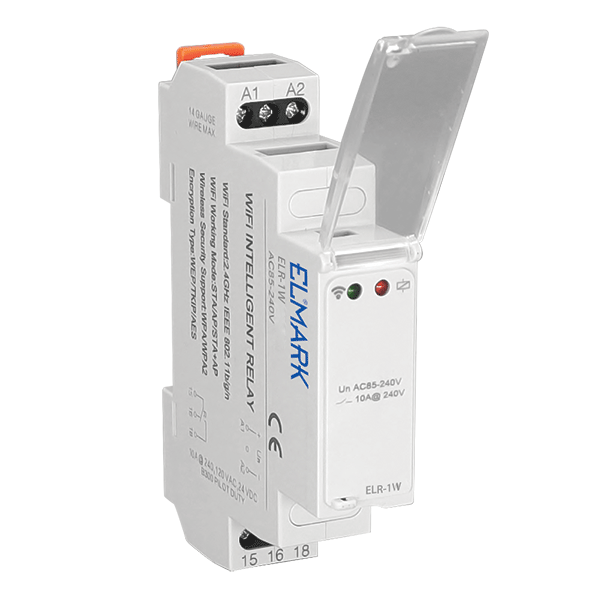

WI-FI relä BUILT-IN ANTENNA 10А 85-240V AC/DC
  1. Hem
  2. WI-FI relä BUILT-IN ANTENNA 10А 85-240V AC/DC
  3. Tillbaka
WI-FI relä BUILT-IN ANTENNA 10А 85-240V AC/DC

WI-FI relä BUILT-IN ANTENNA 10А 85-240V AC/DC

50150
  1. Varumärke ELMARK
  2. Jämföra Skriv ut
  • Pris:
    1071 . 74 kr Inklusive moms
  • Kvantitet (pcs) :

I lager

I lager
KÖP KLAR ATT SKICKA

Tekniska data

  • IP-kod IP20
  • Aktiv belastning 10A
  • Measuring accuracy SТА/АP/STA+AP
  • Arbetstemperatur (° C): NO+NC
  • Dimensioner (mm) W:18хD:65хH:90
  • Power supply 85-240V AC/DC
  • Operating mode SТА/АP/STA+AP
  • Varumärke ELMARK
  • Garanti

  • ELR-1W is widely used in smart homes and industrial intelligent control. It adopts the most

    popular Wi-Fi 2.4GHz control chip, and cooperates with powerful APP and mainstream voice

    assistants. Realize WLAN local control (even if the network is disconnected, you can also use APP local control and remote control, allowing users to fully experience the convenient life brought by

    modern intelligent technology. Using mobile phone APP or voice control device to control ON and OFF of the output of this product to realize the purpose of remotely starting or turning off the load electrical appliances. The product cooperates with the corresponding APP to realize the following functions:

    • Support Smart Config for fast networking.

    • Support multiple control types: switch, timing start and stop, cycle control, etc.

    • Support WLAN local control and remote control.

    • Access to mainstream voice assistants such as Tmall Genie, DuerOS, Xiao Ai (Xiao Mi), Alexa,

    Google, etc., voice control.

    • Intranet device sharing and cloud account device sharing function.

    • APP supports Android and iOS systems.


    Technical data:

    Voltage range: 85-240 V AC/DC

    Rated current: 10A

    Standard: IEEE 802.11b/g/n

    Working mode: STA/AP/STA+AP

    Wireless Security: WPA/WPA2

    Working frequncy: 2.4 GHz - 2.5 GHz (2400M-2483.5M)

    Transmit power:

    802.11b (CCK): 19+/- 1dBm

    802.11g (OFDM): 14+/- 1dBm

    802.11n (HT20@MCS7): 13+/- 1dBm

    Wireless Transmission distance:

    Indoor: 45M

    outdoor: 150M (note: it depends on the environment)
