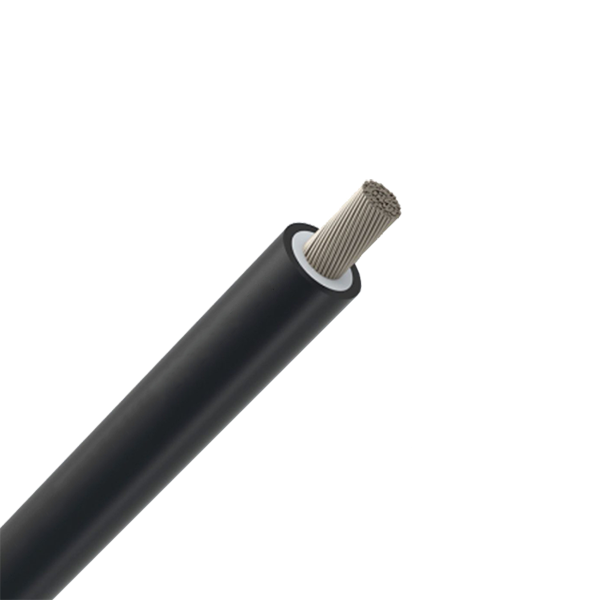

SOLKABEL H1Z2Z2-K 0.6/1KV 1X4.00MM² SVART

SOLKABEL H1Z2Z2-K 0.6/1KV 1X4.00MM² SVART

M411079/BL
  1. Jämföra Skriv ut
  • Pris:
    15 . 52 kr Inklusive moms
  • Kvantitet:

I lager

I lager
KÖP KLAR ATT SKICKA

Tekniska data

  • Antal kärnor 1
  • Sektion 4 mm²
  • Garanti

  •  H1Z2Z2-K cable is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially de- signed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.


    TECHNICAL CHARACTERISTICS:


    • Operating voltage: AC- 1.0KV; DC- 1.5KV

    • Max. operating voltage: AC- 1.2KV; DC- 1.8KV

    • Test volatge: AC- 6.5KV for 5 min; DC- 15KV for 5 min

    • Ambient work temperature: from -40 to + 90 °C

    • Max. short circuit temperature: +250 ° C for 5s

    • Maximum pulling stress: 15 N/mm2 in operation, 50N/mm2 during installation.


    TECHNICAL DATA:

    • Conductor: Tinned copper multi-wires class 5

    • Insulation: LSZH reticulated elastomeric compound

    with neutral colour

    • Outer sheath: LSZH reticulated elastomeric

    compound

    • UV resistant

    • Colour: Black and red

    • Reaction to fire - Performance: EN 50575:2016 Eca
