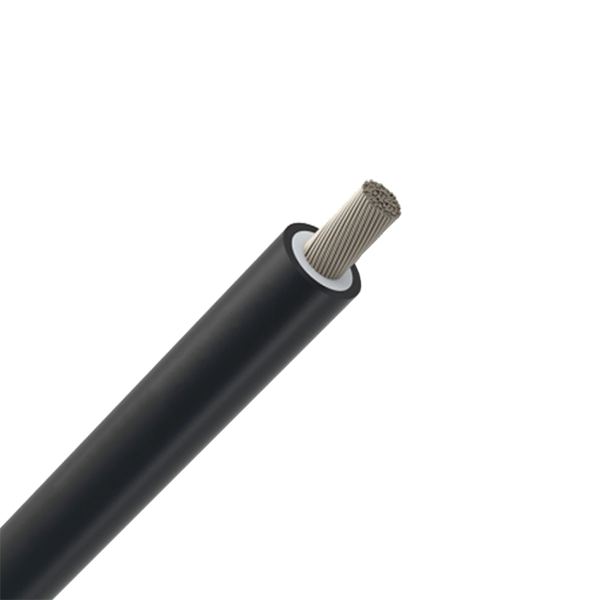

H1Z2Z2-K cable is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially de- signed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.
TECHNICAL CHARACTERISTICS:
• Operating voltage: AC- 1.0KV; DC- 1.5KV
• Max. operating voltage: AC- 1.2KV; DC- 1.8KV
• Test volatge: AC- 6.5KV for 5 min; DC- 15KV for 5 min
• Ambient work temperature: from -40 to + 90 °C
• Max. short circuit temperature: +250 ° C for 5s
• Maximum pulling stress: 15 N/mm2 in operation, 50N/mm2 during installation.
TECHNICAL DATA:
• Conductor: Tinned copper multi-wires class 5
• Insulation: LSZH reticulated elastomeric compound
with neutral colour
• Outer sheath: LSZH reticulated elastomeric
compound
• UV resistant
• Colour: Black and red
• Reaction to fire - Performance: EN 50575:2016 Eca
